MD-Series

Multidirectional Benche Equipment

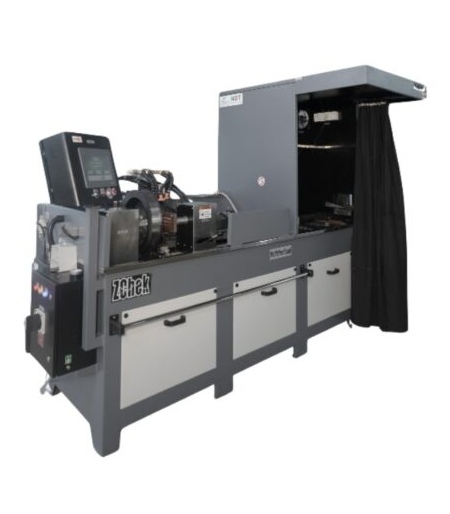

Most versatile wet magnetic benches with multi-directional capabilities with each output offering AC, HWDC or 1-phase FWDC output.

The MD-Series multi-directional magnetic bench offers Alternating Current, Half Wave Direct Current and 1-phase Full Wave Direct Current for time-saving multidirectional magnetization which can find defects in all orientations with one mag-cycle.

The two outputs (contact and Flux Flow coil) each offer AC, HWDC or 1-Phase FWDC, and are independently adjustable to balance the magnet field intensity.

MD-Series magnetic benches are available in three models: ZC-230MD, ZC-450MD and ZC-600MD

Key Properties
Product Features

		ZC-230MD	ZC-450MD	ZC-600MD
Magnetizing Current Capacity at Contacts (amps)	AC	2,500	4,000	5,000
Magnetizing Current Capacity at Contacts (amps)	HWDC	3,000	5,000	6,000
Magnetizing Current Capacity at Contacts (amps)	FWDC	3,000	5,000	6,000

Designed to meet the requirements of ASTM – E 1444, ASTM E 3024, ASTM E3024 M, ASTM E 709 and NADCAP
Superior Stainless Steel Bath tank & Main Tank design
Thyristorized current control – stepless control with Feedback
Independent power transformers for contact & coil magnetizing
Independently controlled magnetizing circuits for contact/coil & flux flow through HMI with programmable recipes
Current Flow Assurance Indicator – Visual & Audio
Superior Transformer designed with F Class insulation
Unique Bath Pump with controlled agitation system
Superior Pneumatic cylinders only by SMC or FESTO
MS Powder coated Inspection Hood
Current reading on a large HMI screen
Motorized tail stack and magnetizing cables with cable protection
Digital Ammeters with memory retention & Shot Duration Timer (Only For Aerospace Application)
Transformer Over load Protection & alarm
Interlocking for set current assurance
Interlock for Demagnetization sequence (Optional)
Powder coated Metal Structural Hood with front Sliding Curtain with White Light & Exhaust Fan
Dark Adaptation Timer
Data recording logging and recall with optional connectivity to internet
Bath Level indicator & alarm
Allen Bradley PLC & HMI controls – No Manual Features
Adjustable Tail Stock with a Rachet wheel
Low Air Pressure alarm
